Product Description
| Package | Product | Vces(V) | Ic(A) | VCE(sat)(V) | Configuration | typical value @Tj=25℃ | ||
| VF(V) | Eon(mJ) | Eoff(mJ) | ||||||

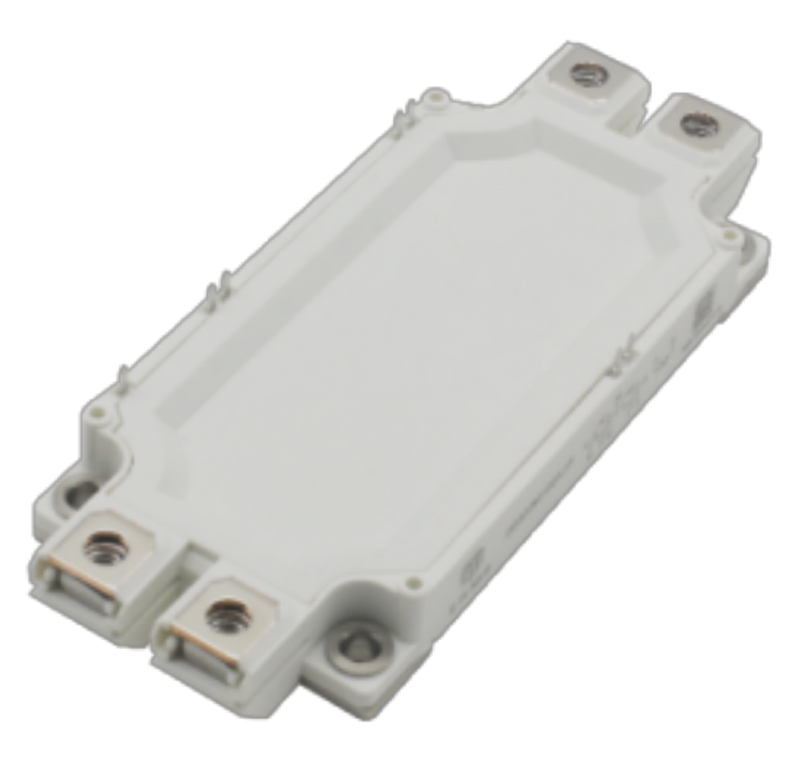

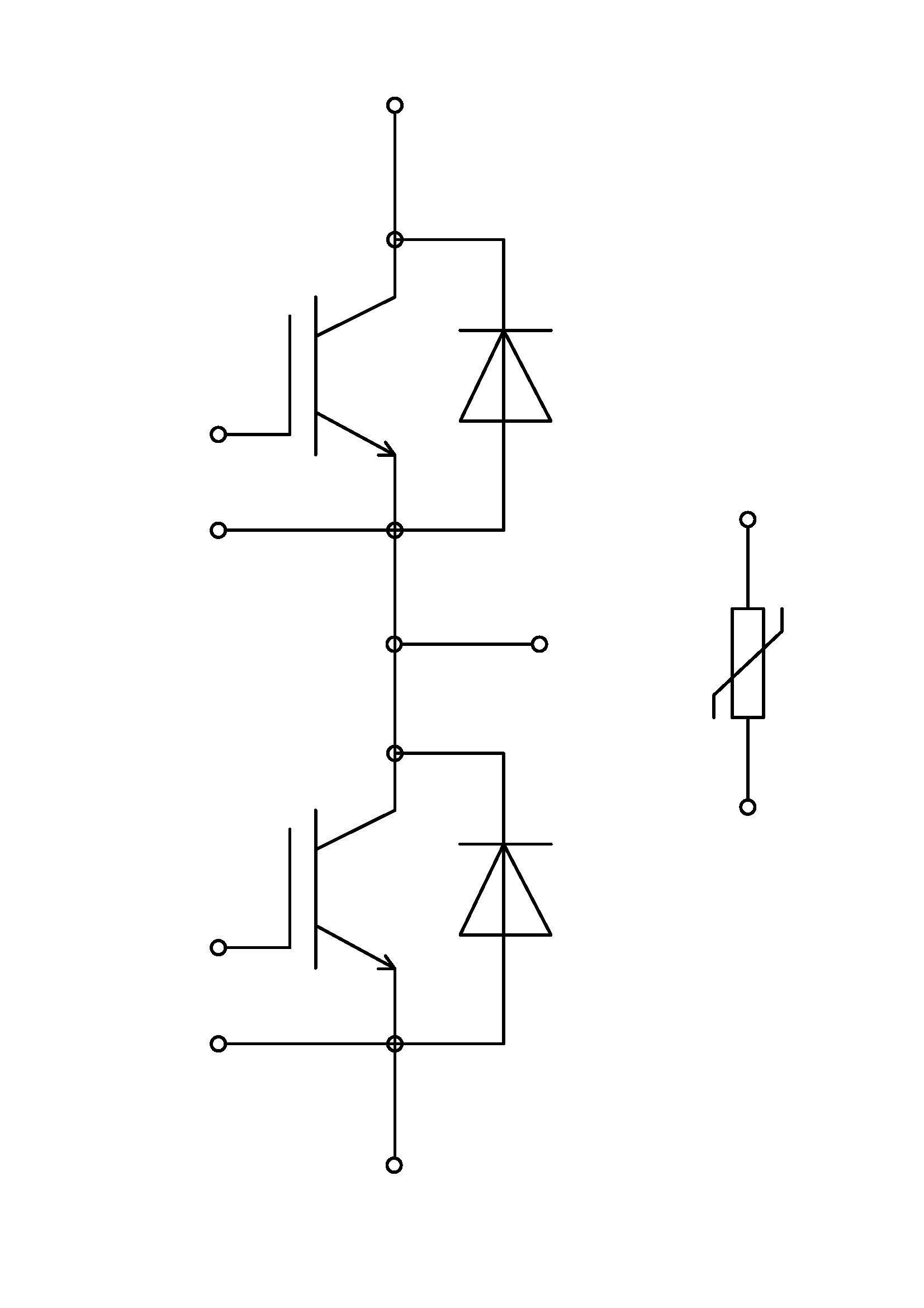

| DriveED3 | 2E300M07A1P | 650 | 300 | 1.70 | Half Bridge | 1.55 | 5.3 | 16.5 |
| 2E450M07A1P | 650 | 450 | 1.70 | Half Bridge | 1.55 | 7.1 | 19.7 | |
| 2E600M07A1P | 650 | 600 | 1.70 | Half Bridge | 1.55 | 14.8 | 33.4 | |
| 2E100M120A1P | 1200 | 100 | 1.70 | Half Bridge | 1.90 | 4.3 | 7.3 | |
| 2E150M120A1P | 1200 | 150 | 1.70 | Half Bridge | 1.90 | 6.4 | 10.8 | |
| 2E225M120A1P | 1200 | 225 | 1.70 | Half Bridge | 1.90 | 7.9 | 15.3 | |
| 2E300M120A1P | 1200 | 300 | 1.70 | Half Bridge | 1.90 | 10.4 | 29.0 | |
| 2E450M120A1P | 1200 | 450 | 1.70 | Half Bridge | 1.90 | 12.8 | 42.4 | |
| 2E600M120A1P | 1200 | 600 | 1.70 | Half Bridge | 1.90 | 30.2 | 78.4 | |
| 2E800M120A1P | 1200 | 800 | 1.90 | Half Bridge | 1.90 | 49.0 | 96.8 | |
| 2E300MF120A1P | 1200 | 300 | 1.95 | Half Bridge | 1.70 | 4 | 18.0 | |
| 2E450MF120A1P | 1200 | 450 | 1.95 | Half Bridge | 1.70 | 8.5 | 24 | |
| 2E600MF120A1P | 1200 | 600 | 1.95 | Half Bridge | 1.70 | 6.15 | 36 | |
| 2E450TA170A1P | 1700 | 450 | 1.80 | Half Bridge | 2.80 | 118 | 129 | |
| 2E600TA170A1P | 1700 | 600 | 1.80 | Half Bridge | 2.80 | 153 | 155 | |

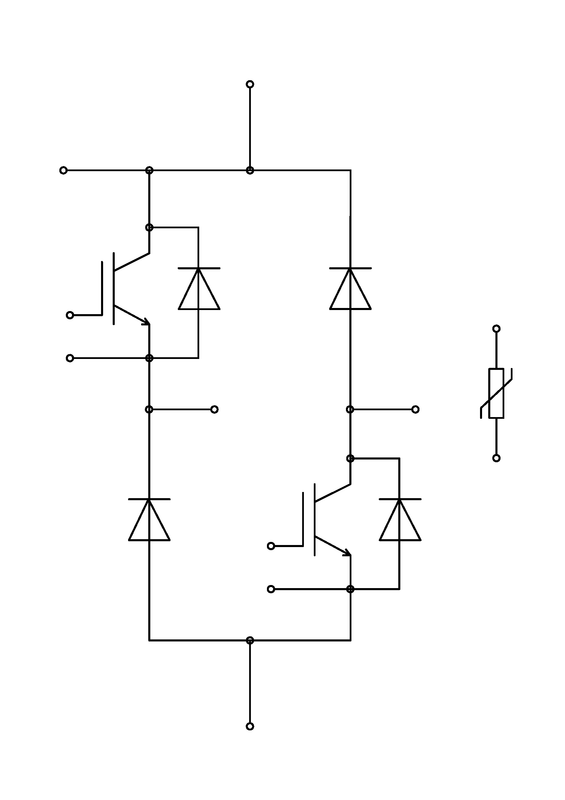

| DriveED3 | CBE300M07A1P | 650 | 300 | 1.70 | Chopper | 1.55 | 5.3 | 16.5 |
| CBE450M07A1P | 650 | 450 | 1.70 | Chopper | 1.55 | 7.1 | 19.7 | |
| CBE600M07A1P | 650 | 600 | 1.70 | Chopper | 1.55 | 14.8 | 33.4 | |
| CBE300M120A1P | 1200 | 300 | 1.70 | Chopper | 1.90 | 10.4 | 29.0 | |
| CBE450M120A1P | 1200 | 450 | 1.70 | Chopper | 1.90 | 12.8 | 42.4 | |
