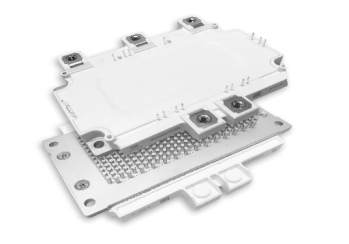

DriveZ1W

Features
A.LOW VCE(sat)
B.Low Switching Losses
C.Ultrasonic Welding of Power Terminals

 Applications
A. Motor Drives
B. Automotive Applications
C. Commercial Agriculture Vehicles
Availability:

Product Description

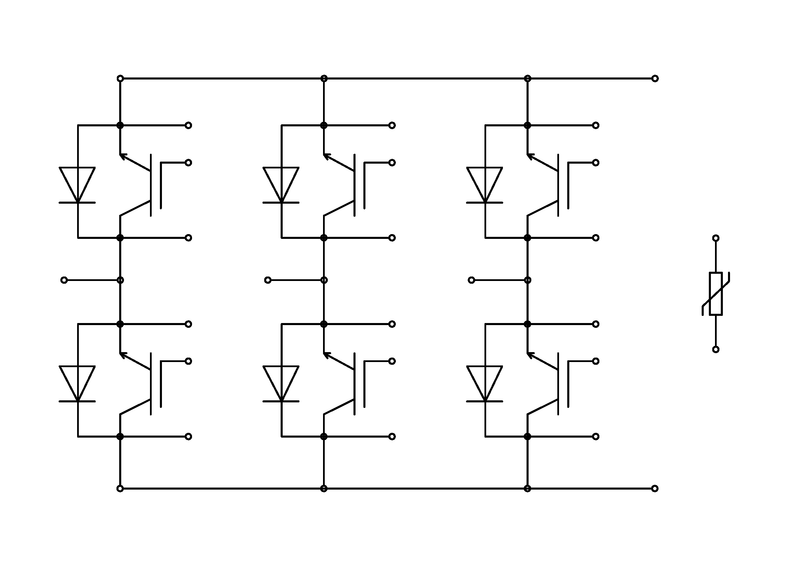

PackageProductVces(V)Ic(A)VCE(sat)(V)Configurationtypical value @Tj=25℃
VF(V)Eon(mJ)Eoff(mJ)
DriveZ1W6K300M07A1P6503001.55six-pack1.601.924.7
6K400M07A1P6504001.55six-pack1.602.429.3
6K550M07A1P6505501.55six-pack1.602.832.5
6K300M08A1P7503001.40six-pack1.751.925.8
6K400M08A1P7504001.40six-pack1.752.629.7
6K550M08A1P7505501.40six-pack1.753.236.7
6K200M120A1P12002001.70six-pack1.804.215.8
6K300M120A1P12003001.70six-pack1.805.823.5
DriveZ1W6K300M07A1P26503001.55six-pack1.601.924.7
6K400M07A1P26504001.55six-pack1.602.429.3
6K550M07A1P26505501.55six-pack1.602.832.5
6K660M07A1P26506601.55six-pack1.603.336.4
6K300M08A1P27503001.40six-pack1.751.925.8
6K400M08A1P27504001.40six-pack1.752.629.7
6K550M08A1P27505501.40six-pack1.753.236.7
6K660M08A1P27506601.40six-pack1.753.839.8
