Product Description
| Package | Product | Vces(V) | Ic(A) | VCE(sat)(V) | Configuration | typical value @Tj=25℃ | ||
| VF(V) | Eon(mJ) | Eoff(mJ) | ||||||

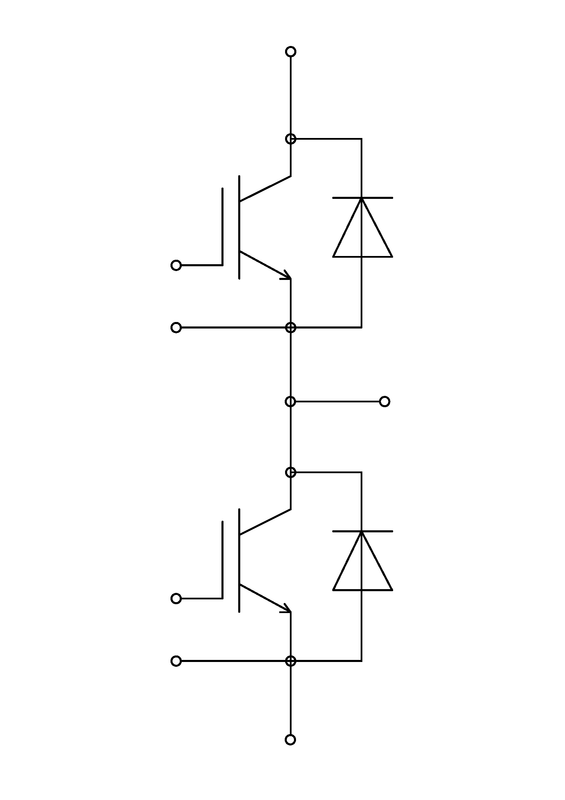

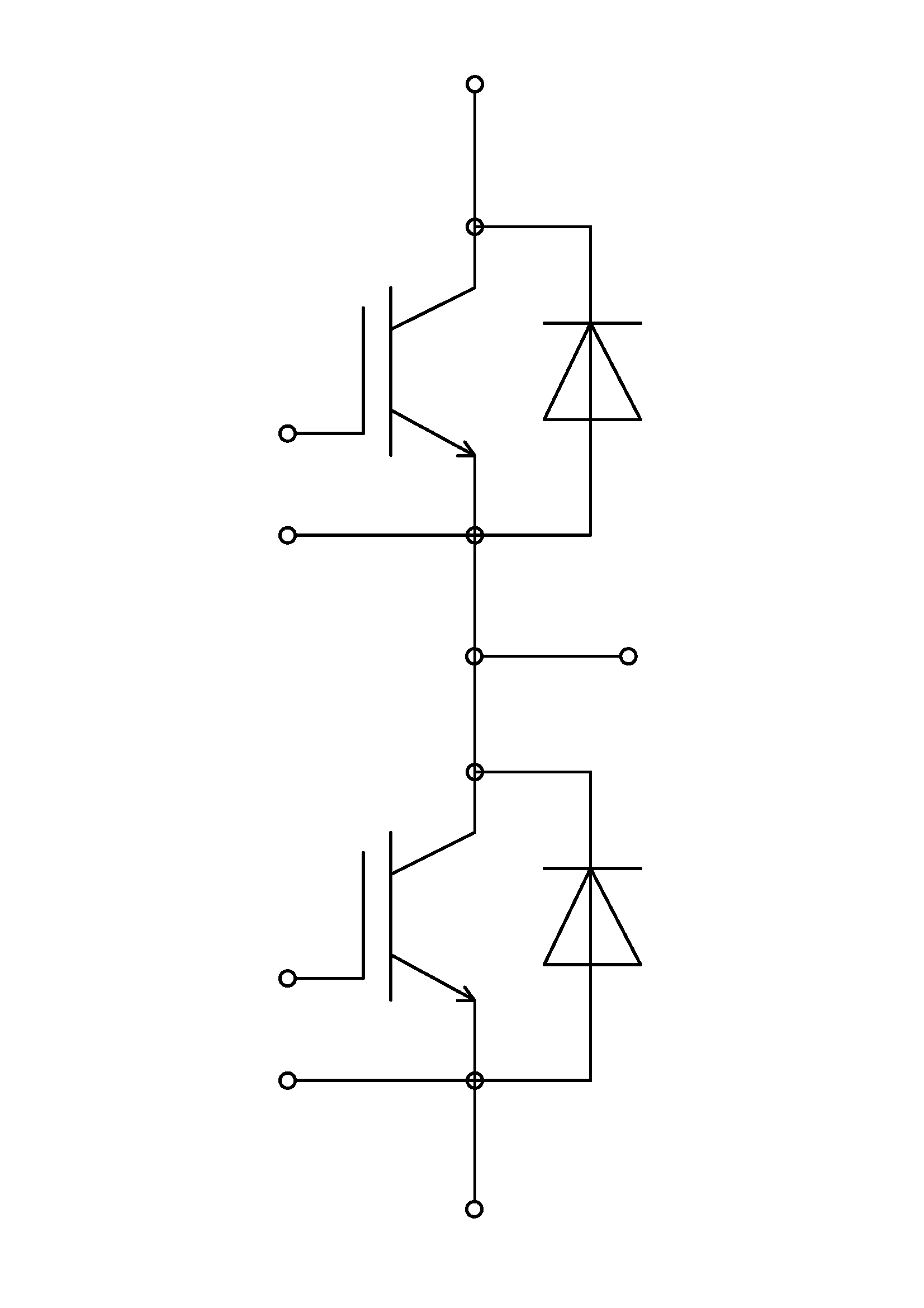

| DriveZ34 | 2A75M07S1P | 650 | 75 | 1.60 | Half Bridge | 1.60 | 0.71 | 2.31 |
| 2A100M07S1P | 650 | 100 | 1.60 | Half Bridge | 1.60 | 0.78 | 2.52 | |
| 2A150M07S1P | 650 | 150 | 1.50 | Half Bridge | 1.60 | 1.4 | 4.2 | |
| 2A200M07S1P | 650 | 200 | 1.50 | Half Bridge | 1.60 | 1.7 | 6.1 | |
| 2A50ZF120S1P | 1200 | 50 | 3.10 | Half Bridge | 2.10 | 3.9 | 1.3 | |
| 2A75ZF120S1P | 1200 | 75 | 3.10 | Half Bridge | 1.90 | 7.1 | 1.9 | |
| 2A100ZF120S1P | 1200 | 100 | 3.10 | Half Bridge | 1.90 | 10.9 | 2.9 | |
| 2A75ZL120S1P | 1200 | 75 | 1.95 | Half Bridge | 2.40 | 7.1 | 5.7 | |
| 2A100ZL120S1P | 1200 | 100 | 1.95 | Half Bridge | 1.80 | 3.8 | 7.1 | |
| 2A150ZL120S1P | 1200 | 150 | 1.95 | Half Bridge | 1.70 | 15.1 | 7.0 | |

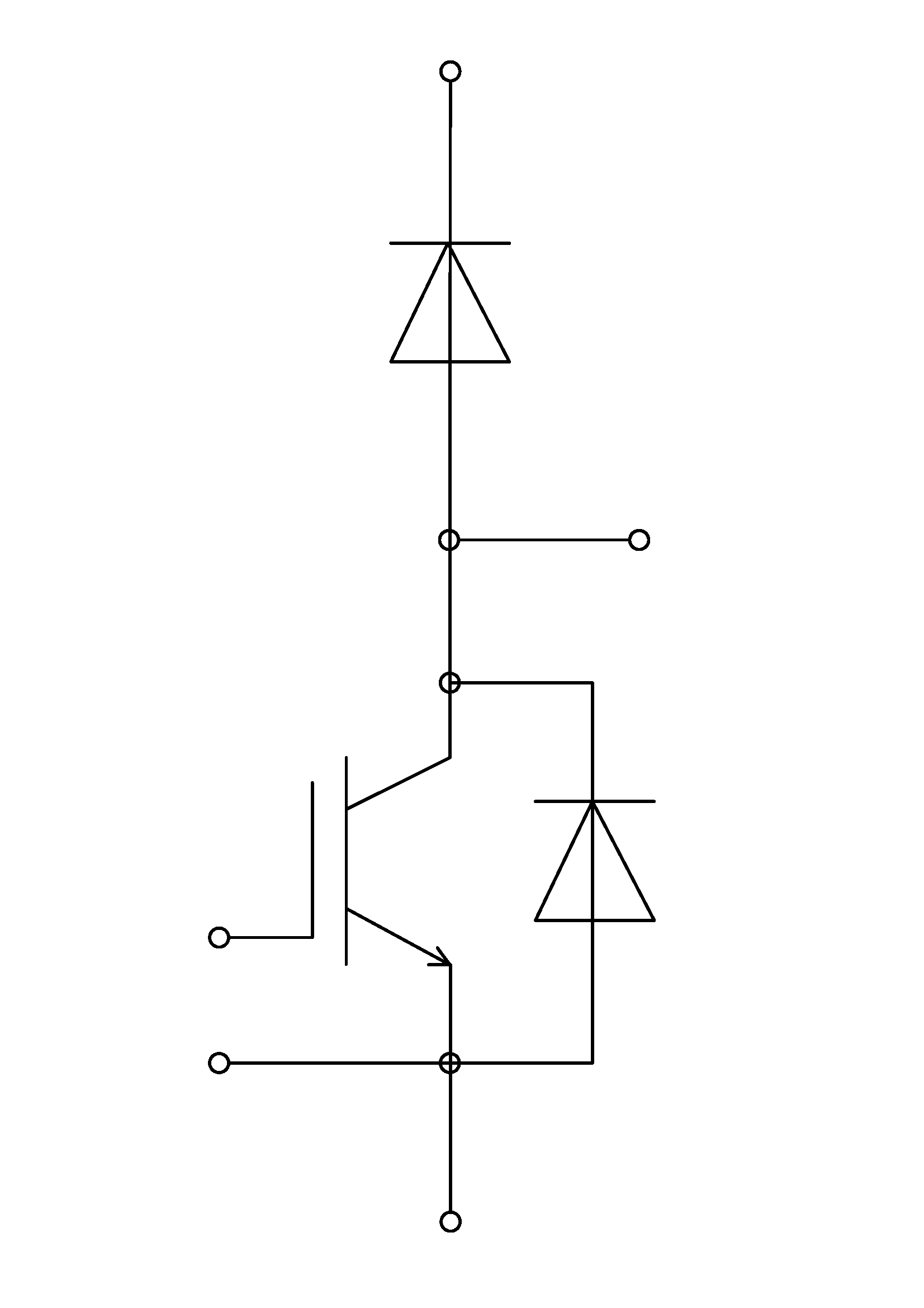

| DriveZ34 | CHA75ZL120S1P | 1200 | 75 | 1.95 | Chopper High | 2.40 | 7.1 | 5.7 |
| CHA100ZL120S1P | 1200 | 100 | 1.95 | Chopper High | 1.80 | 3.8 | 7.1 | |
| CHA150ZL120S1P | 1200 | 150 | 1.95 | Chopper High | 1.70 | 15.1 | 7.0 | |

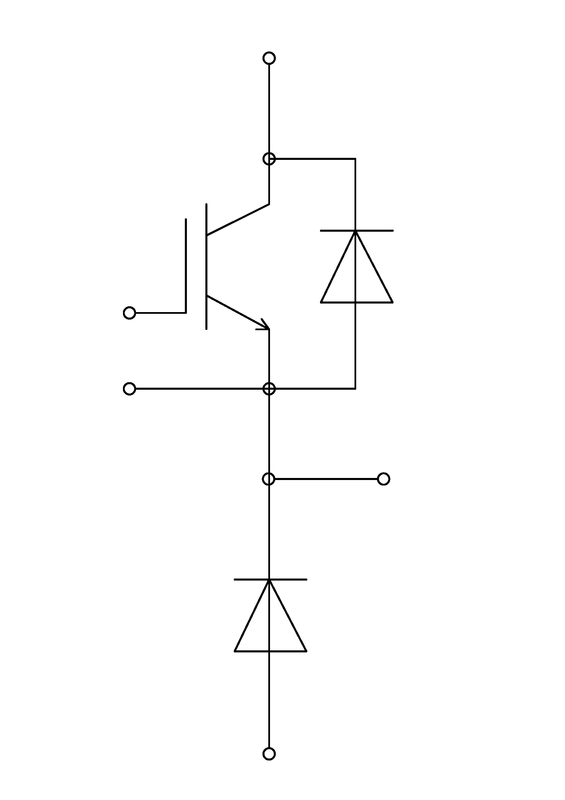

| DriveZ34 | CLA75ZL120S1P | 1200 | 75 | 1.95 | Chopper Low | 2.40 | 7.1 | 5.7 |
| CLA100ZL120S1P | 1200 | 100 | 1.95 | Chopper Low | 1.80 | 3.8 | 7.1 | |
| CLA150ZL120S1P | 1200 | 150 | 1.95 | Chopper Low | 1.70 | 15.1 | 7.0 | |
| DriveZ34 | 2A80B07H1P | 650 | 80 | 1.45 | Half Bridge | 1.45 | 059 | 1.28 |
