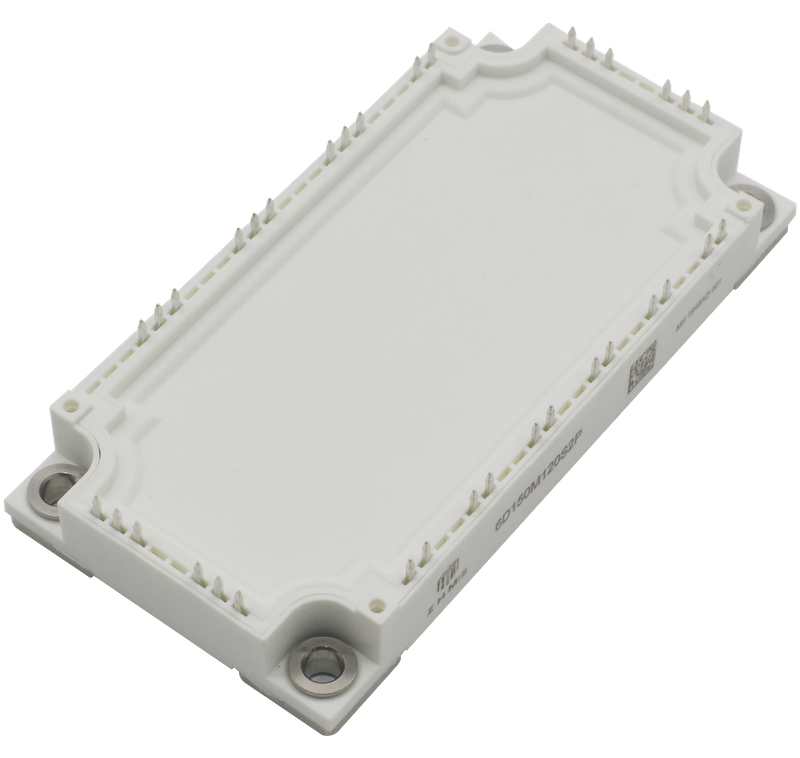

DriveE3
Features
A.LOW VCE(sat)
B.Low Switching Losses
C.Integrated NTC temperature sensor

Applications
A.Motor Drivese
B.Servo Drives
C.UPS Systemss

Product Description


PackageProductVces(V)Ic(A)VCE(sat)(V)Configurationtypical value @Tj=25℃
VF(V)Eon(mJ)Eoff(mJ)
DriveE36D75M120S1P1200751.70six-pack1.803.02.0
6D100M120S1P12001001.70six-pack1.805.15.2
6D150M120S1P12001501.70six-pack1.806.78.5
6D200M120S1P12002001.70six-pack1.808.411.7
6D100TA120S1P12001002.00six-pack2.006.85.9
6D150TA120S1P12001502.00six-pack2.007.57.0
