DriveZ62

Features
A. Low VCE(sat)
B. Low switching loss
C. Power terminal
Ultrasonic welding D. Standard housing

Application
A. Motor drive
B. Wind turbines
C. High power converter

Product Description

Package	Product	Vces(V)	Ic(A)	VCE(sat)(V)	Configuration	typical value @Tj=25℃
Package	Product	Vces(V)	Ic(A)	VCE(sat)(V)	Configuration	VF(V)	Eon(mJ)	Eoff(mJ)

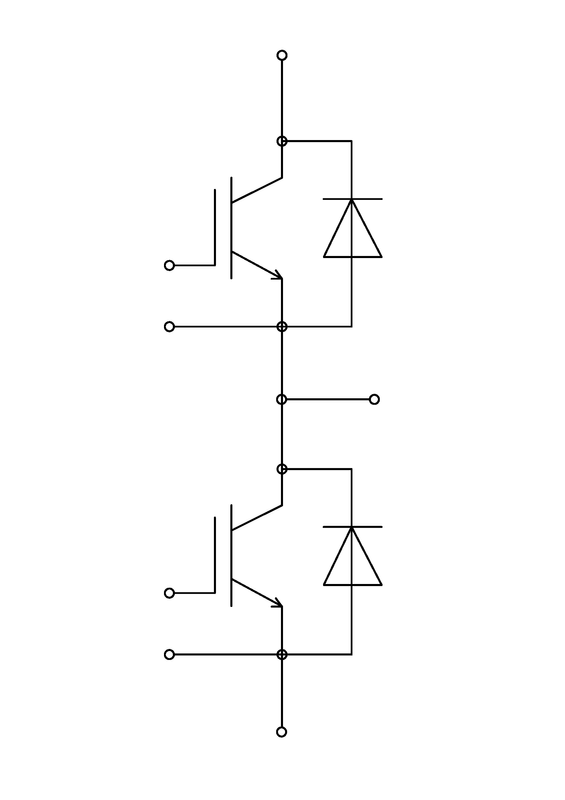

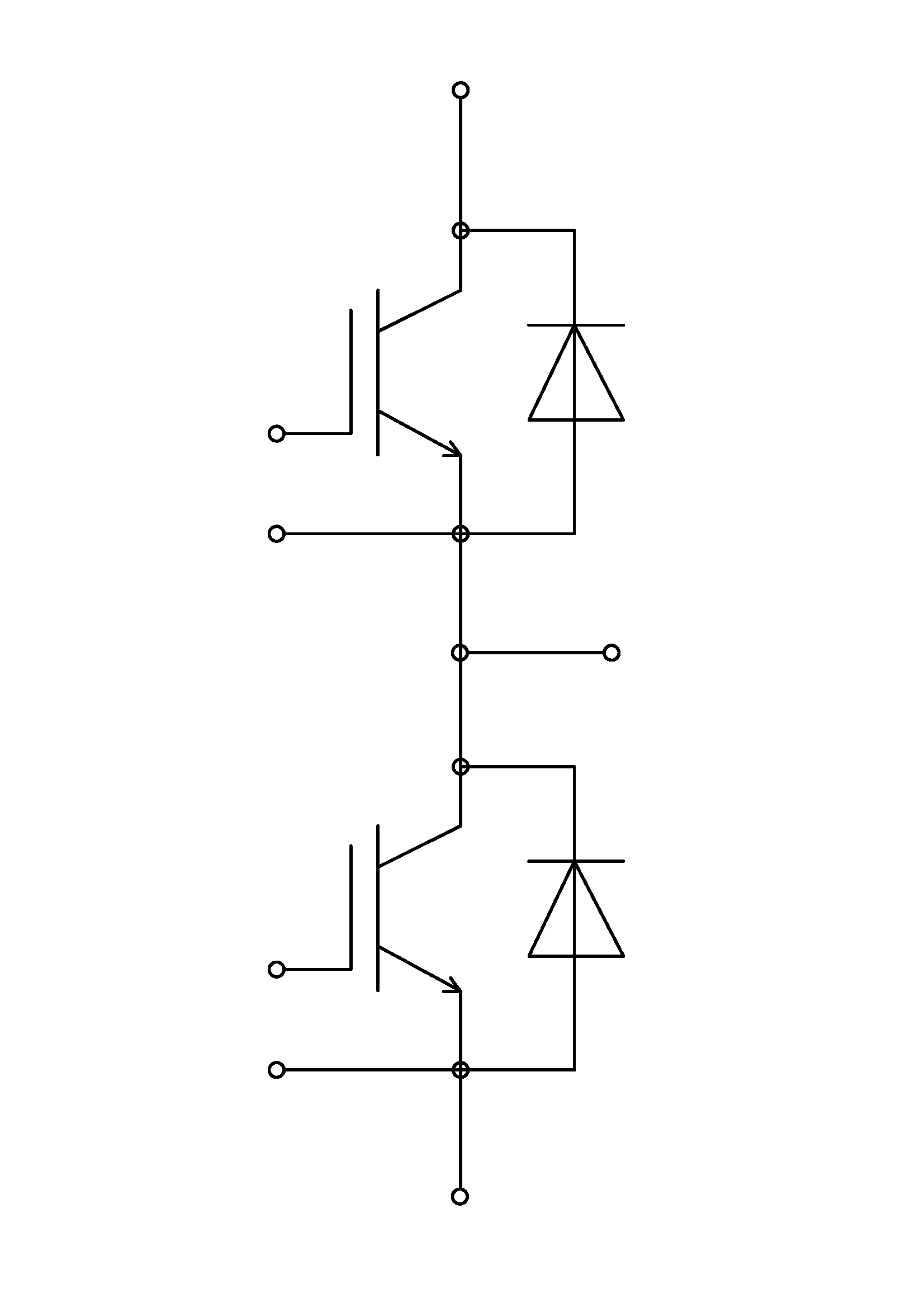

DriveZ62	2B300M07S1P	650	300	1.70	Half Bridge	1.90	5.3	12.9
	2B400M07S1P	650	400	1.70	Half Bridge	1.90	6.9	16.6
	2B150M120S1P	1200	150	1.70	Half Bridge	1.80	3.1	10.1
	2B200M120S1P	1200	200	1.70	Half Bridge	1.80	3.9	14.5
	2B300M120S1P	1200	300	1.70	Half Bridge	1.80	5.4	22.3
	2B400M120S1P	1200	400	1.70	Half Bridge	1.80	6.6	34.8
	2B450M120S1P	1200	450	1.70	Half Bridge	1.80	11.3	45.7
	2B600M120S1P	1200	600	1.70	Half Bridge	1.65	15.5	60
	2B800M120S1P	1200	800	1.70	Half Bridge	1.70	26	79
	2B100MF120S1P	1200	100	1.95	Half Bridge	1.70	3.6	5.0
	2B150MF120S1P	1200	150	1.95	Half Bridge	1.70	3.7	8.6
	2B200MF120S1P	1200	200	1.95	Half Bridge	1.70	3.9	11.0
	2B300MF120S1P	1200	300	1.95	Half Bridge	1.70	4.2	18.2
	2B400MF120S1P	1200	400	1.95	Half Bridge	1.70	7.8	22
	2B450MF120S1P	1200	450	1.95	Half Bridge	1.70	8.5	24
	2B100ZF120S1P	1200	100	3.10	Half Bridge	1.90	11.2	2.6
	2B150ZF120S1P	1200	150	3.10	Half Bridge	1.90	15.4	3.8
	2B200ZF120S1P	1200	200	3.10	Half Bridge	1.90	20.4	5.6
	2B300ZF120S1P	1200	300	3.10	Half Bridge	1.90	33.4	8.9

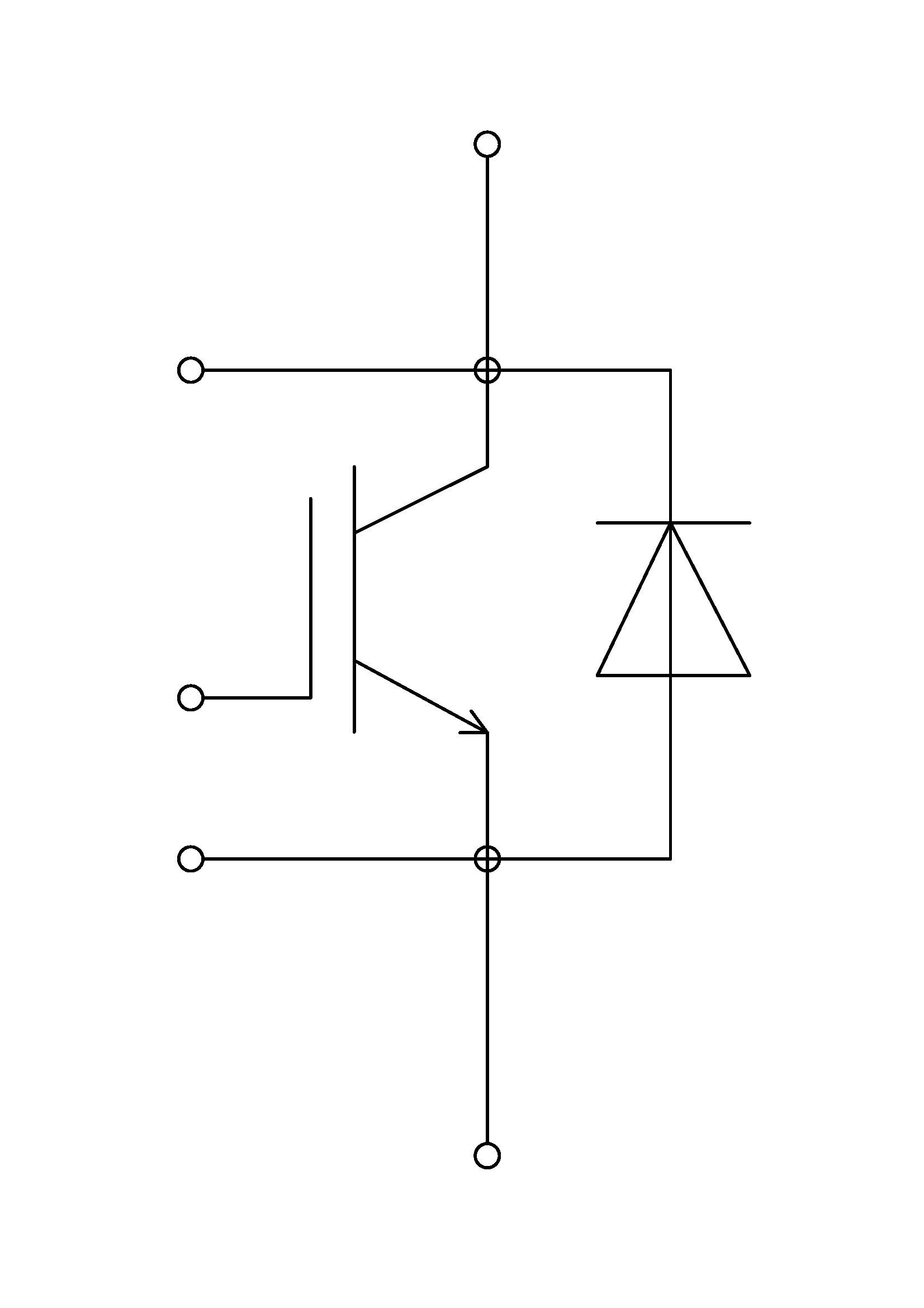

DriveZ62	SDB600M120S1P	1200	600	1.70	Single	1.90	30.2	78.4
	SDB800M120S1P	1200	800	1.70	Single	1.80	53	110
	SDB400MF120S1P	1200	400	1.95	Single	1.70	7.8	22
	SDB600MF120S1P	1200	600	1.95	Single	1.70	10	36

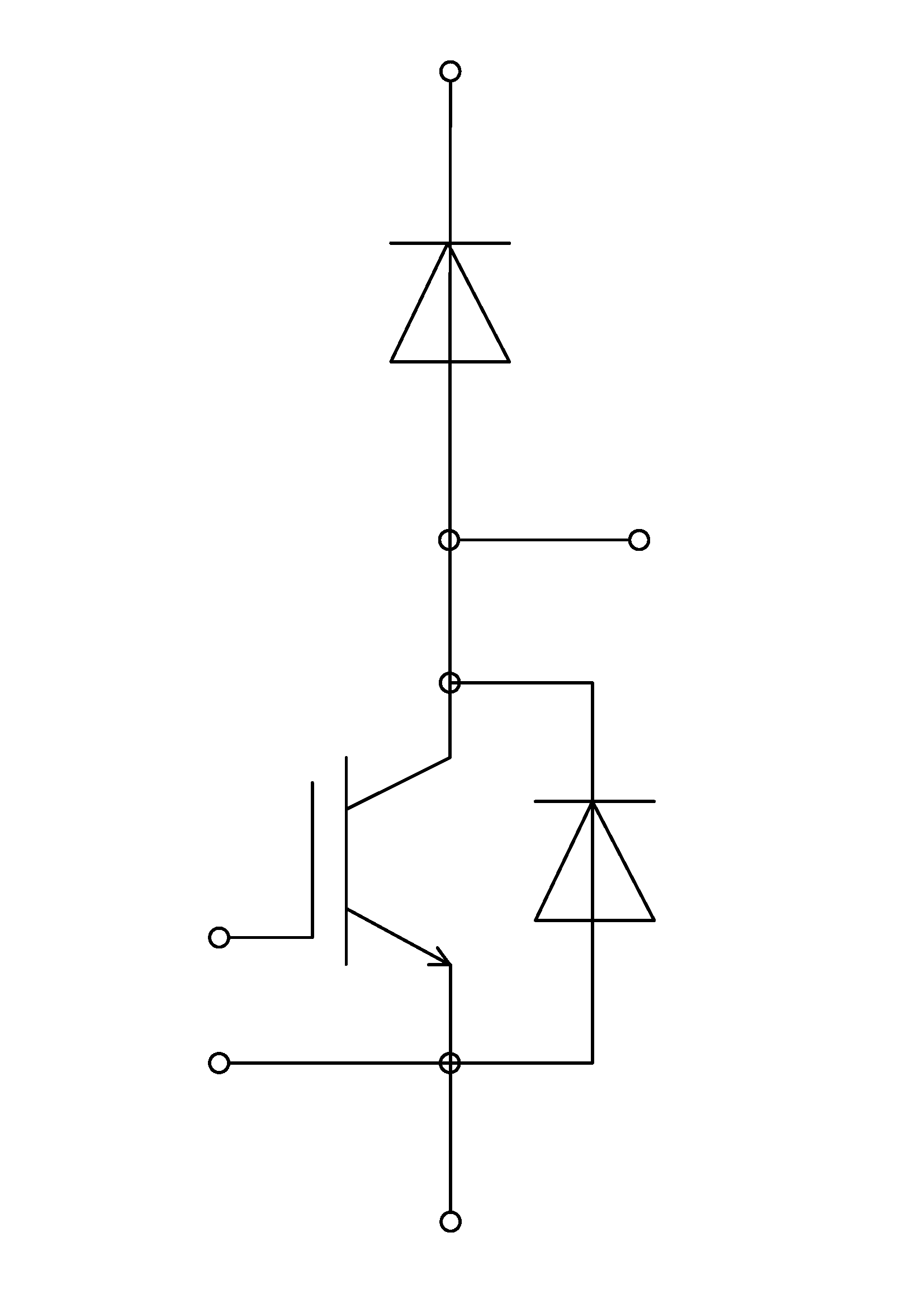

DriveZ62	CLB150M120S1P	1200	150	1.70	Chopper Low	1.80	3.1	10.1
	CLB200M120S1P	1200	200	1.70	Chopper Low	1.80	3.9	14.5
	CLB300M120S1P	1200	300	1.70	Chopper Low	1.80	5.4	22.3
	CLB400M120S1P	1200	400	1.70	Chopper Low	1.80	6.6	34.8
	CLB450M120S1P	1200	450	1.70	Chopper Low	1.80	11.3	45.7

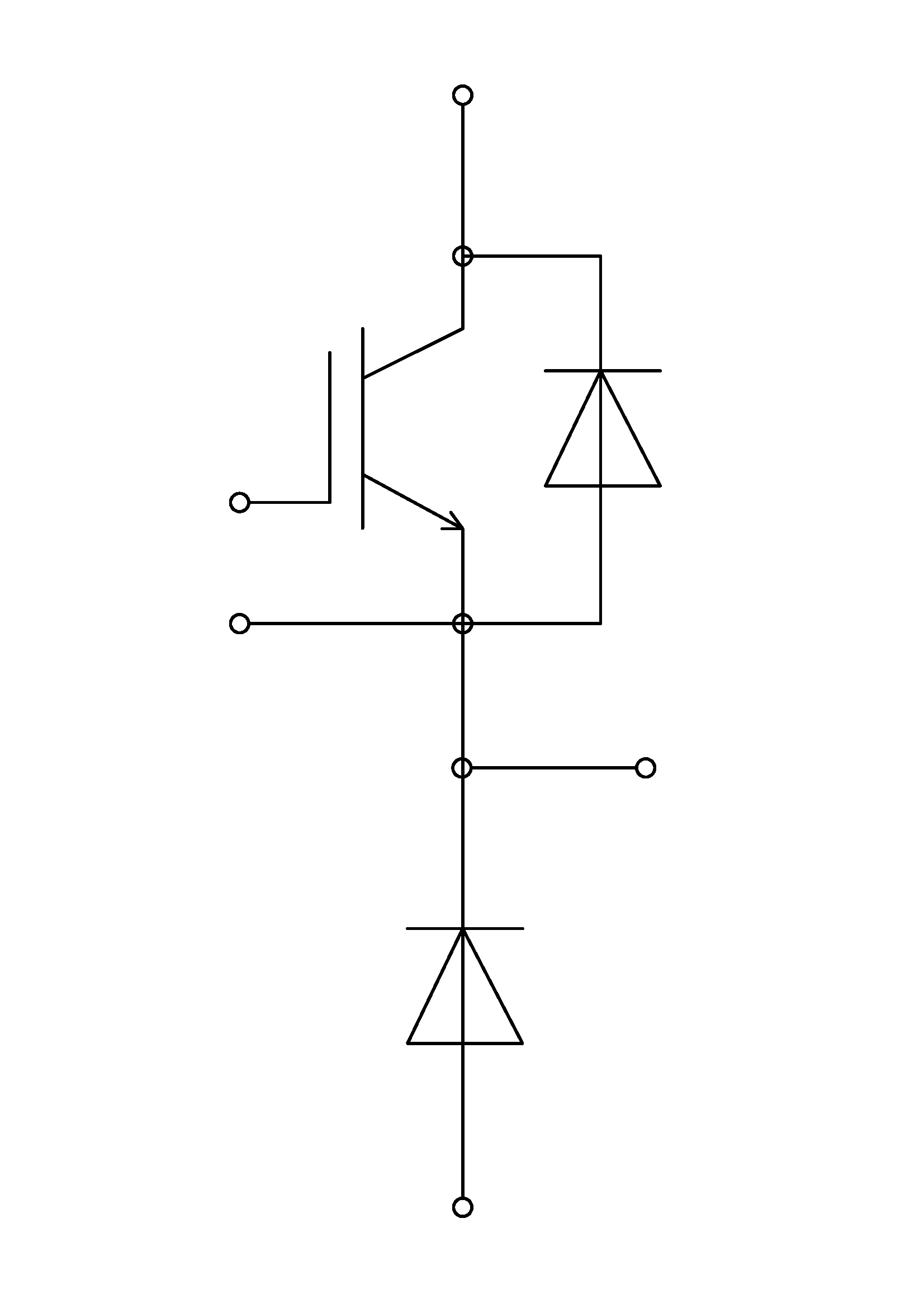

DriveZ62	CHB150M120S1P	1200	150	1.70	Chopper High	1.80	3.1	10.1
	CHB200M120S1P	1200	200	1.70	Chopper High	1.80	3.9	14.5
	CHB300M120S1P	1200	300	1.70	Chopper High	1.80	5.4	22.3
	CHB400M120S1P	1200	400	1.70	Chopper High	1.80	6.6	34.8
	CHB450M120S1P	1200	450	1.70	Chopper High	1.80	11.3	45.7


