DriveED3/SiC
Features
A.Ultrasonic Welding of Terminale-
B.Copper Wire Bonding
C.High Strength Ceramic Substrates-
D.High Reliability Modules

Applications
A.Automotive Applicationes
B.Motor Drives
C.Wind Turbinese

Product Description


PackageProductProduct StatusVDSS(V)VGSS(V)ID(A)Configurationtypical value @Tj=25℃
RDS(on)(mΩ)VSD(V)Eon(mJ)Eoff(mJ)

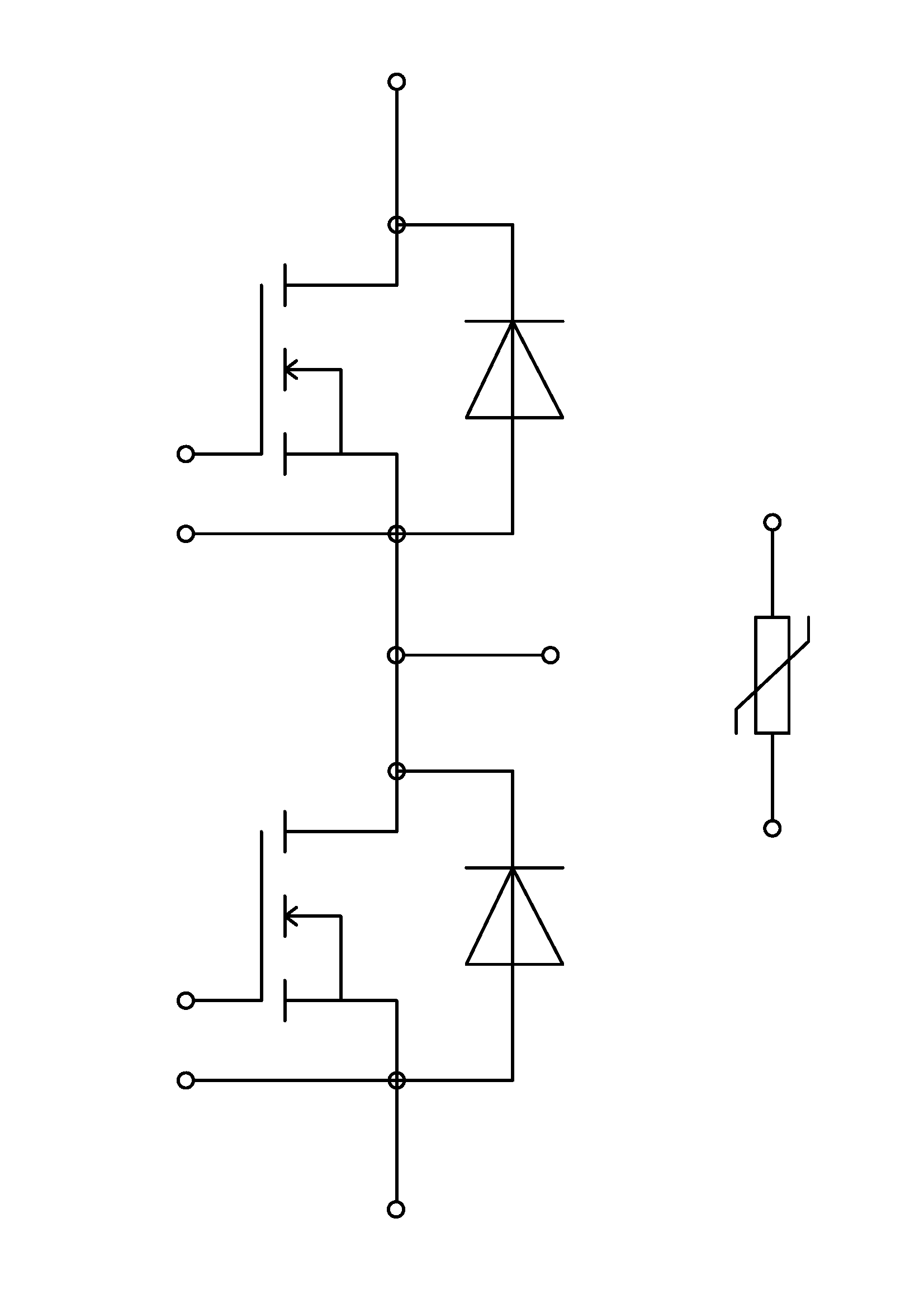

DriveED3/sic2E300E120T1PDeveloping1200+25/-10300Half Bridge41.60T.B.DT.B.D
2E400E120T1PDeveloping1200+25/-10400Half Bridge31.60T.B.DT.B.D
2E600E120T1PDeveloping1200+25/-10600Half Bridge21.60T.B.DT.B.D
2E300E120T2PDeveloping1200+20/-4300Half Bridge62.00T.B.DT.B.D
2E400E120T2PDeveloping1200+20/-4400Half Bridge52.00T.B.DT.B.D
2E600E120T2PDeveloping1200+20/-4600Half Bridge32.00T.B.DT.B.D
